High visibility Safety Handles (Commercial & heavy duty incl. P&P & VAT)

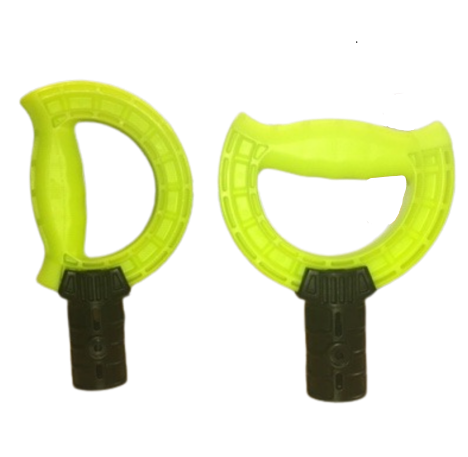

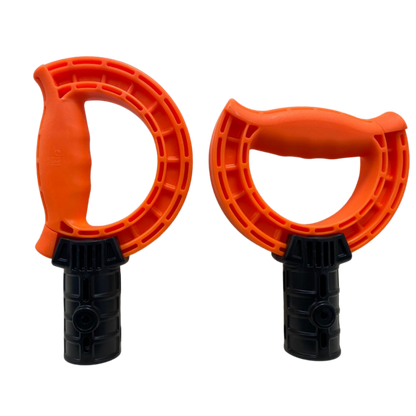

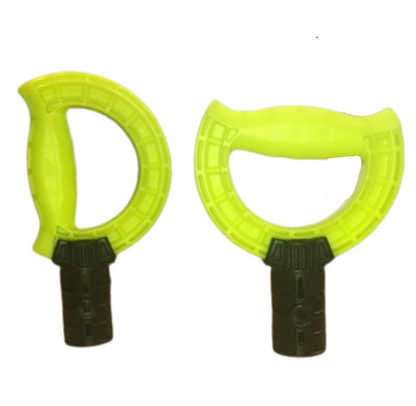

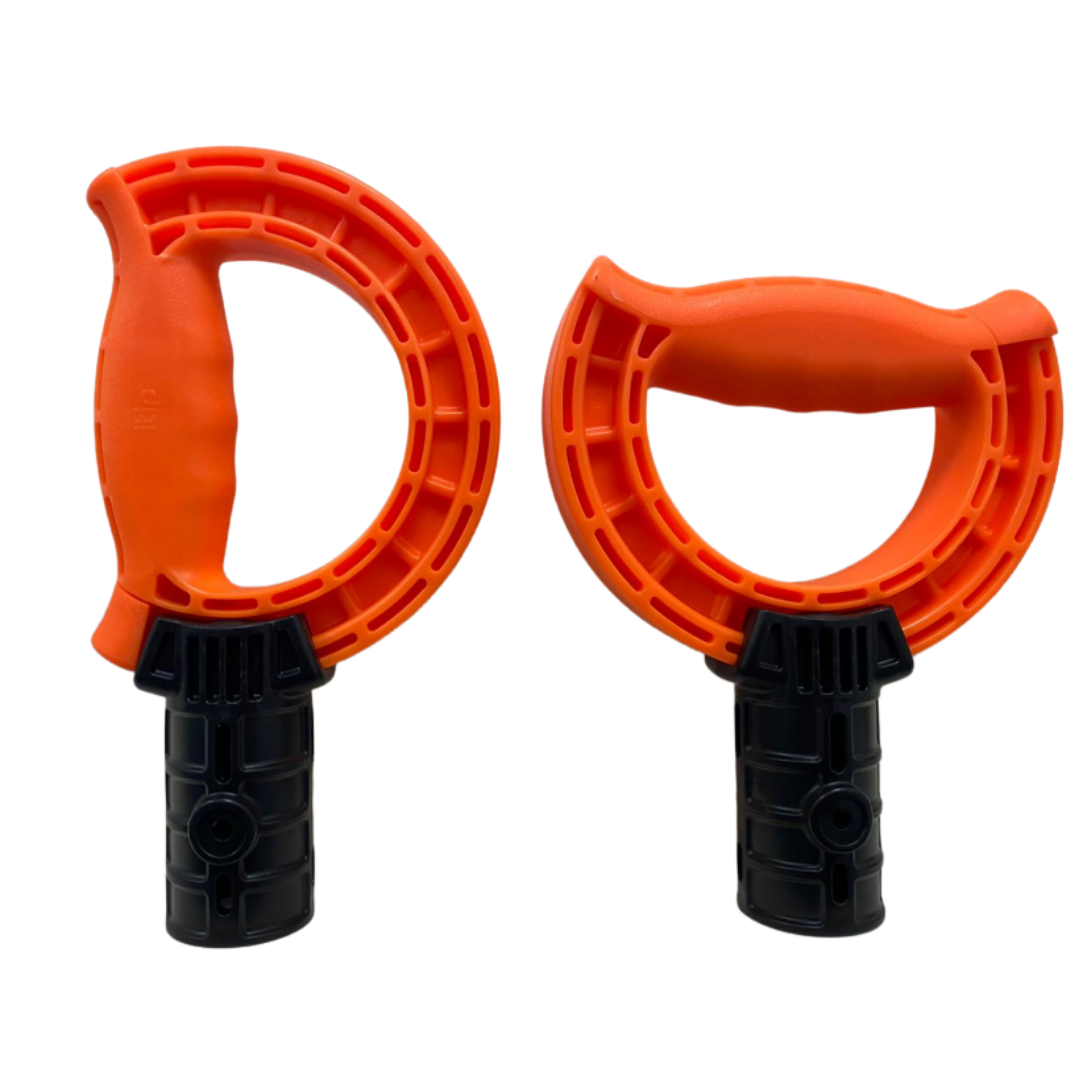

A set of revolutionary Safety Handles in high visibility orange and yellow.
For safety situations, high visibility Safety Handles can make a difference in stopping accidents from happening.
Safety® Handles are ergonomically designed handles for devices such as sack trolleys, roll cages, wheelbarrows and hand cleaners. They reduce back and hand injuries, safety and ease of use when manoeuvring and tipping.
The hands are one of the most at-risk parts of the body during manual movement. Large, bright Safety Handles will reduce injuries from accidental catching and crushing. The chances of losing grip are very much reduced.
Safety Handles will not slip off and remain at a nice even temperature during hot or cold days. They are also an advantage if it is not possible to turn the manual handling device around providing the ability to pull from a solid grip.
Following extensive trials and lab research/ development, the polymer composite materials have been focused on and developed for commercial requirements. They have more UV stabilizers and an increased amount of self-lubrication providing increased life and ease of use.
It takes minutes to attach the Safety Handles the first time and then seconds to remove and clean them when necessary. They come complete with a set of easy-to-fit shims in 4 sizes to allow fitting on existing manual handling devices with tubes from 32mm down to 24mm. The box contains everything you will need to fit them from four self-drilling/ tapping screws, a pilot drill bit and a driver bit for your cordless screwdriver*. (*screwdriver is not supplied).
We will endeavour to make sure yours arrive quickly so you can take full advantage of the safety features of Safety Handles as soon as possible.
ezTip Fitting Instructions
Usual Handle Position
If there are any existing grips remove these first.
Mark on the side of the tube the desired position for the handles to be fitted. Masking tape will help to locate your mark and reduce drill slip. It's recommended to either drill a pilot hole or use a centre punch.
Generally, this will be around 50mm from the tube end so your hand will be in roughly the same position as previously. Further down towards the pan will effectively mean you will then naturally lift the wheelbarrow higher, less is therefore lower. Repeat in the same position on the other side.
Drill an 8.5mm hole right through both sides of the tube from one side only, making sure the holes are horizontal. Clean off any burs and insert the assembled ezTip handle with a washer both sides of the tube.
Secure using the MS Nyloc nut. Lock off the nut between the handle and the wheelbarrow using a 13mm open ended thin spanner ..a bicycle multi-spanner type is ideal. Alternatively, remove the 2 cap head bolts with a 5mm allen key to access the head of the spindle bolt. This can then be locked off with a spanner or socket. Please ensure to cut off the excess bolt with a hacksaw or angle grinder and pop on protective black cap.
2Tip 2 Person Position
Its important to get the handles in the best position for your wheelbarrow. Mark position making sure not too far forward that may catch the ground especially when cornering.Look to go towards the centre of the wheel taking care not to drill into the wheel or tyre I Drill the holes as detailed above. Offer the assembled ezTip Safety Handles through the holes and check to make sure the bolt length will not foul the wheel or tyre.
It may be that you need to mark the bolt where it needs to be reduced to, not forgetting the washers and Nyloc nut. In this case having marked the position remove the assembled ezTip from the barrow, wind on the nut past your mark. Cut off the excess bolt and clean up cut end with file. Remove the nyloc.
Re-insert handle complete with washers and secure with the nyloc nut. Repeat on the other side in the same position.
(Printed Instructions Included With ezTip Safety Handles)
